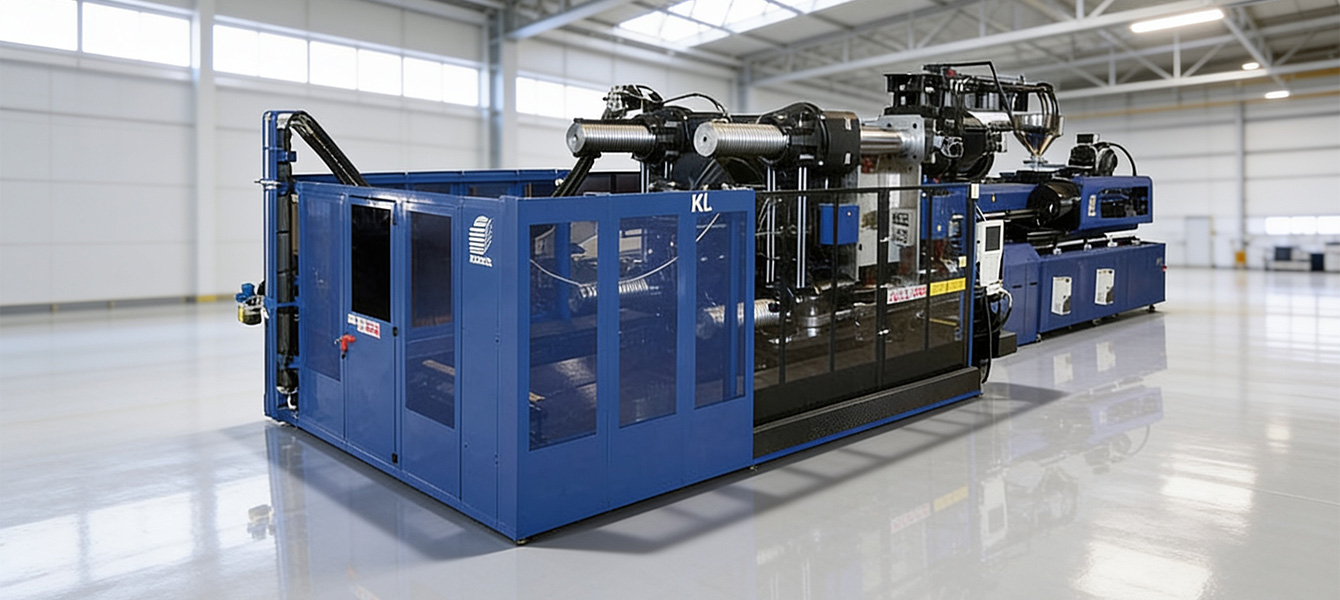

KL Series Two-Platen Machine

Patented Italtech clamping system. KL Series is a fourth-generation two-platen machine range covering 130 to 8000 t. Designed to optimise the number of components and accessibility to reduce spare part costs and labour time. The two-platen layout reduces machine footprint while maintaining structural rigidity and mold access.

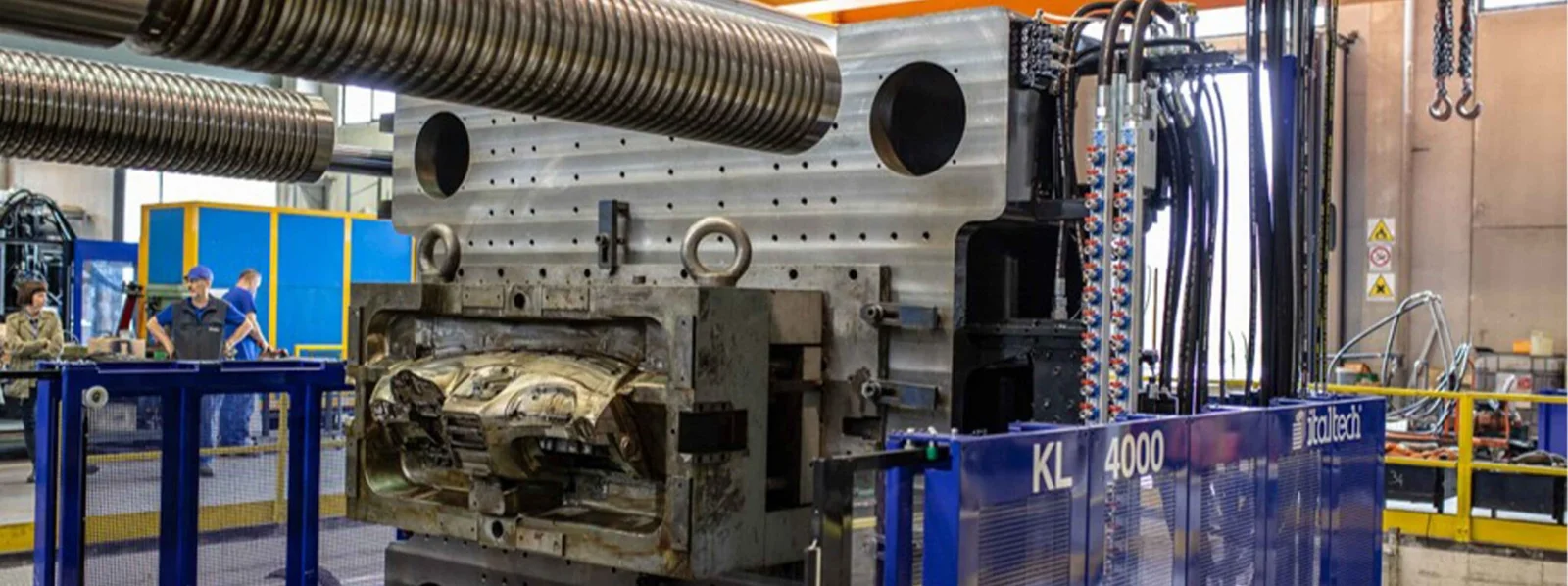

Key features

Mechanical clamping eliminates wear components from the moving platen and keeps the working area clean.

Self-lubricating clamping unit, ensuring high reliability over time.

Synchronised locking system on toothed tie-bars, for uniform force distribution and consistent platen parallelism.

Cantilever tie-bars, for wide and easy mold access.

Modular, bolt-on locking pistons — not integrated into the structure — to simplify maintenance and reduce machine downtime.

No bushings or sliding pads on the tie-bars, for wear-free operation.

Wide daylight opening, ideal for large molds.

Removable tank, to facilitate extraordinary maintenance operations.

Constant platen parallelism throughout the entire molding cycle, ensuring precision and uniform clamping.

Mechanical system

Patented Italtech system removes the hydraulic circuit from the moving platen. Locking by jaws and blocks on the fixed platen. Fully linear no rotating components.

Accurate tie-bar positioning under load

No bushes or pads reduced wear

Clean machine operation

Reduced dry-run cycle time

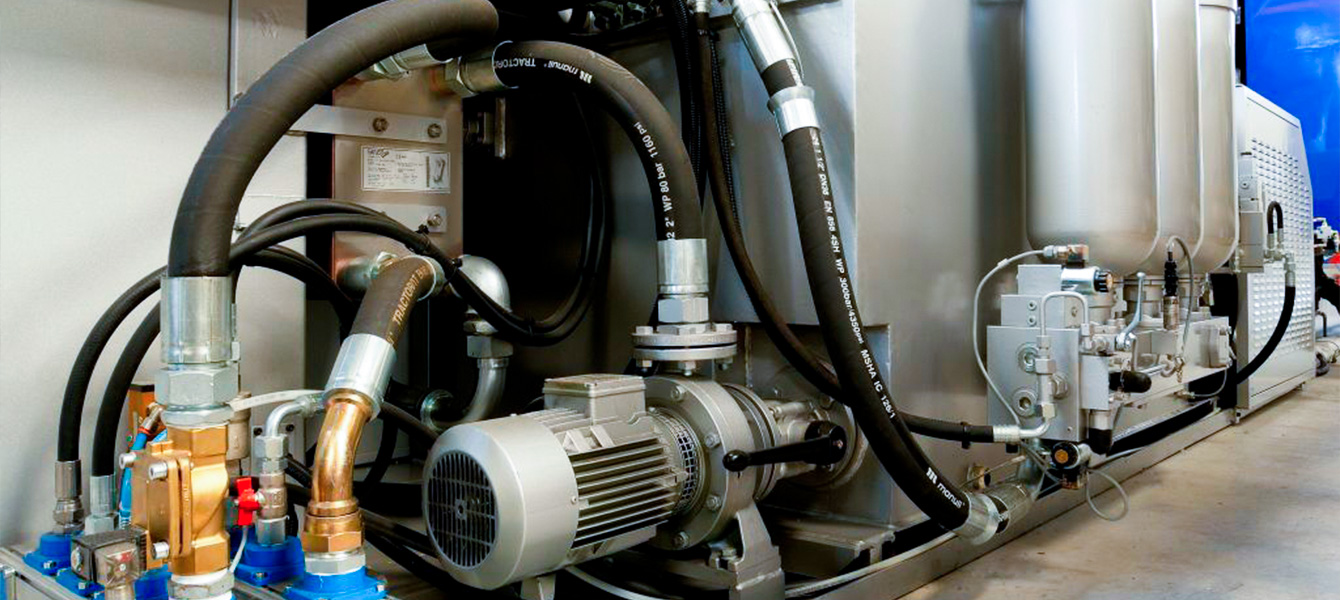

Hydraulic system

Inverter-driven motors supply power based on actual machine demand at each cycle phase.

Power matched to actual demand

Reduced energy consumption

Low noise operation

Stable oil viscosity

Energy efficiency

Energy consumption follows motor speed. At 50% speed, consumption falls to approx 12.5% of rated power.

Energy proportional to motor speed

At 50% speed: approx 12.5% of rated power

Effective during low-demand phases of the cycle

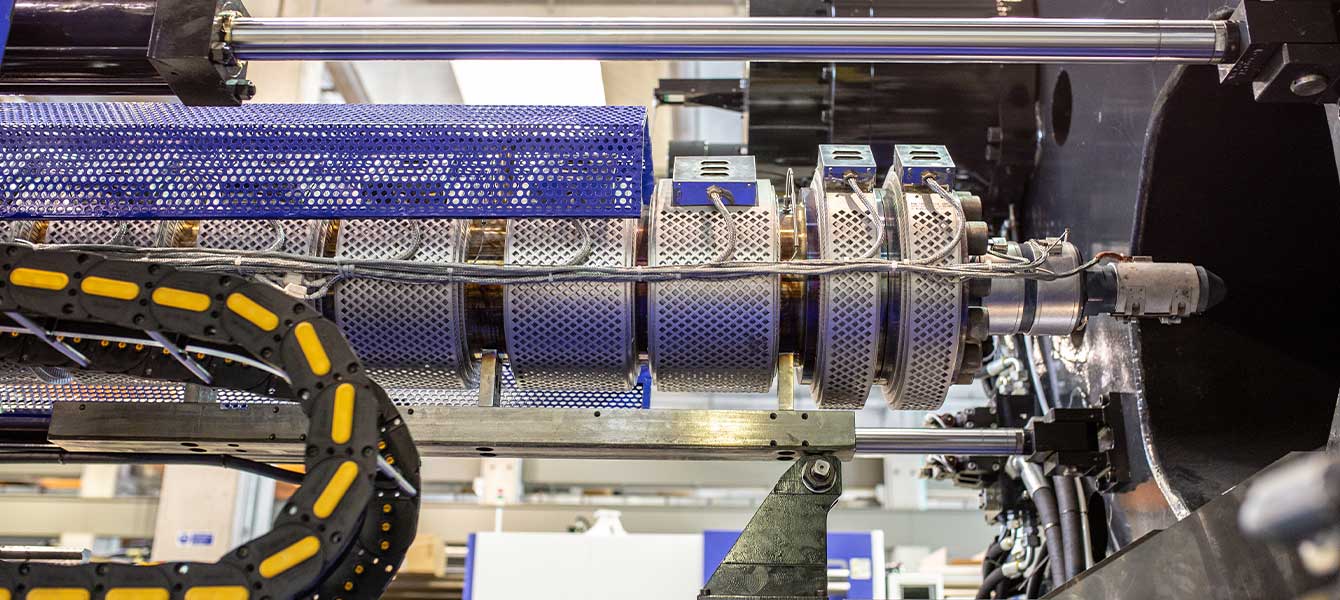

Plasticising system

Over 20 configurations, 75 to 630 kW. Optional electric motor for high plasticising speed.

75 to 630 kW over 20 configurations

Suitable for high-viscosity materials

Electric motor option for high plasticising speed

Special screw designs with mixing sections for homogenisation

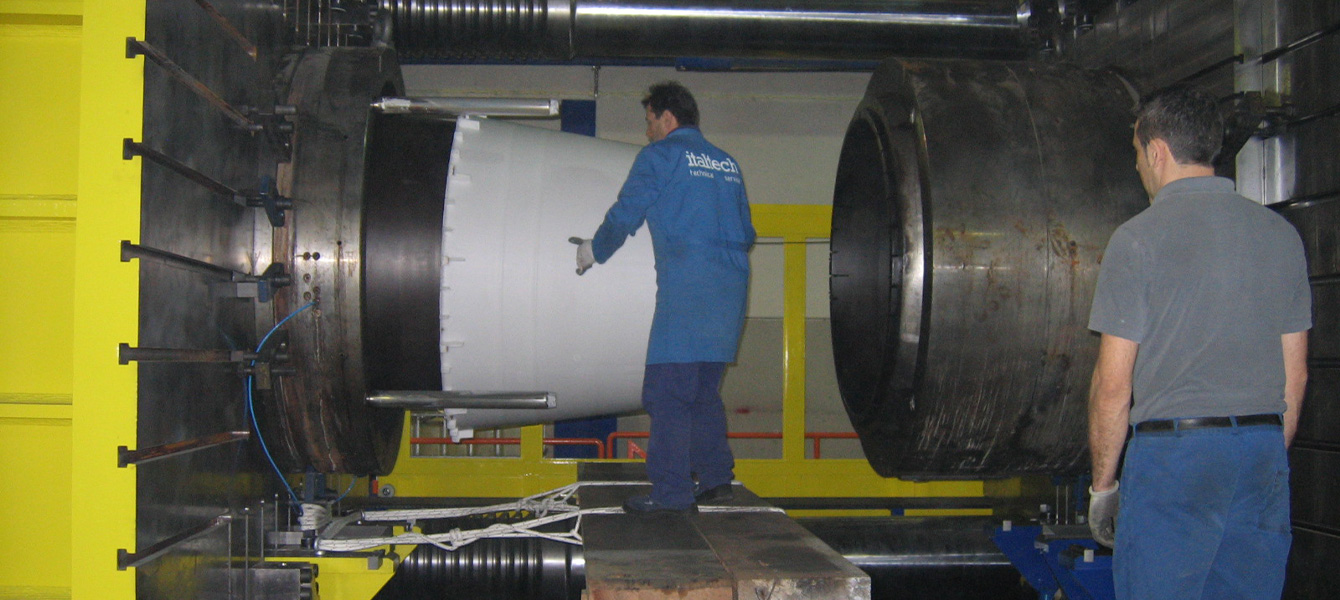

Technical specifications

Technical configuration and machine specifications available according to production requirements.

Clamping force: 130 to 8000 tons

Plasticising power: 75 to 630 kW

Platen material: nodular cast iron

Clamping: mechanical, linear, patented Italtech design

High opening stroke

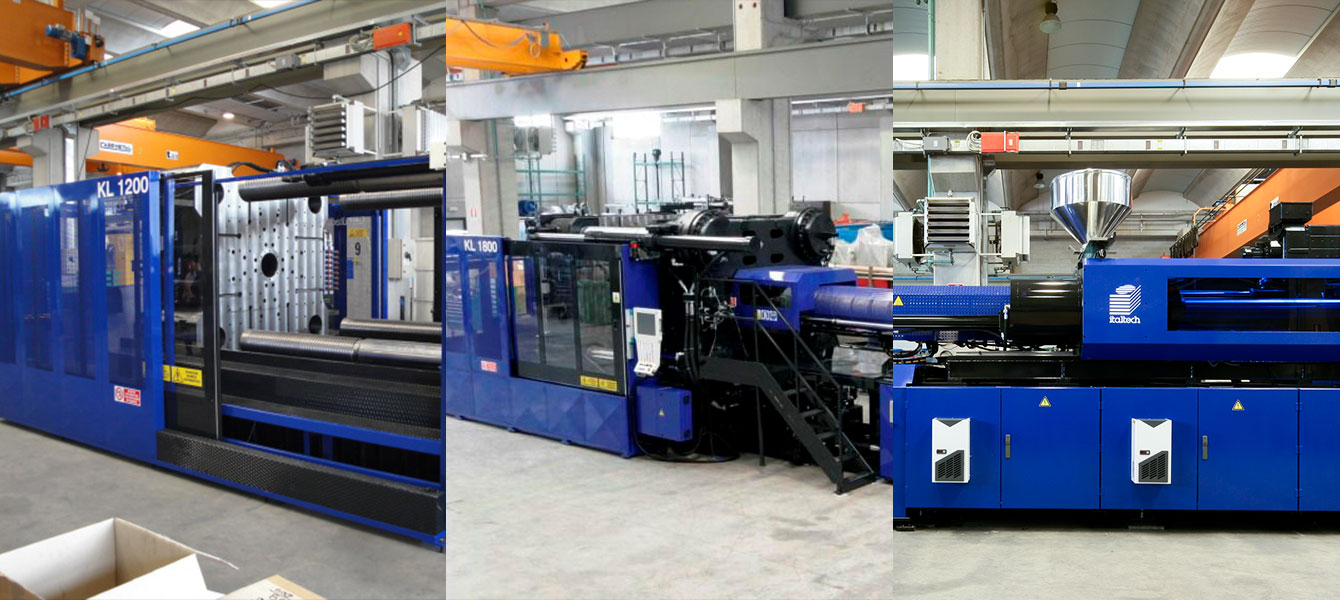

Model range

30 models — KL 130 to KL 8000:

Model	Model
KL 130	KL 2500
KL 250	KL 4000
KL 400	KL 5000
KL 650	KL 6000
KL 1000	KL 8000
KL 1600

Model	Clamping Force	Model	Clamping Force
KL 130	130 tons	KL 2500	2500 tons
KL 250	250 tons	KL 4000	4000 tons
KL 400	400 tons	KL 5000	5000 tons
KL 650	650 tons	KL 6000	6000 tons
KL 1000	1000 tons	KL 8000	8000 tons
KL 1600	1600 tons

Applications

Automotive structural components

Large plastic parts

Industrial and engineering components
